ArjoHuntleigh Maxi Move® Floor Lift

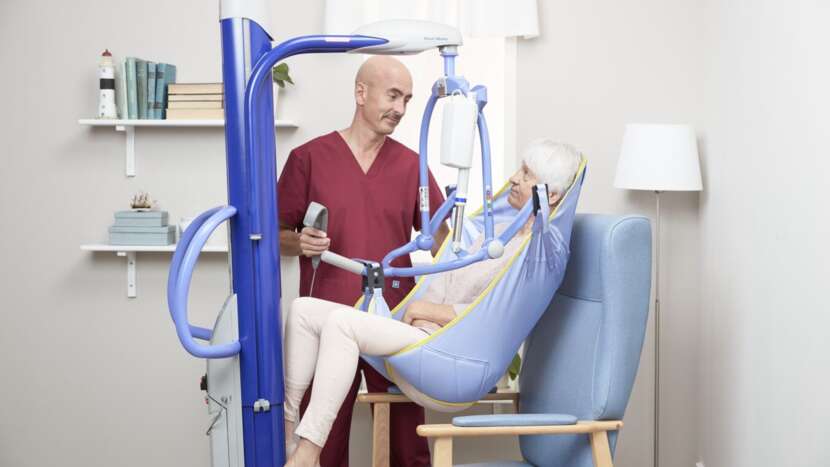

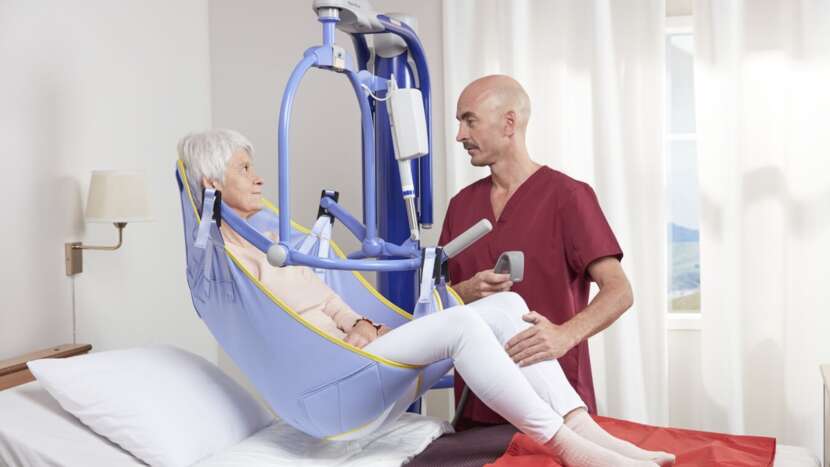

The Maxi Move® floor lift is designed to enable a single caregiver to manage demanding everyday patient or resident transfer and repositioning tasks. It is a versatile solution that can be adapted using a variety of spreader bars to accommodate patient transfer needs.

Key Features:

• Stable Lifting: Vertical lifting action keeps the patient at a constant distance from the mast and in a stable position during lifting and transferring.

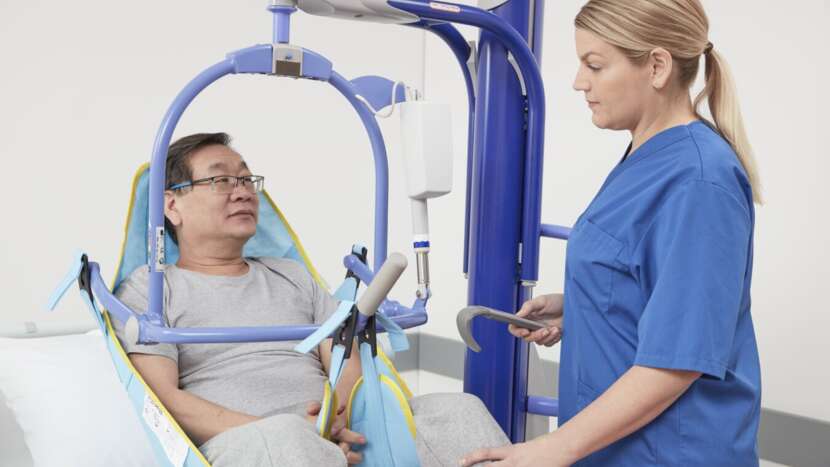

• Precision Transfers: Integrated with the spreader bar is a powered dynamic positioning system (PDPS) that enables the patient to be repositioned in the sling, minimizing the need for manual handling.
• Versatility: Optional interchangeable spreader bars give caregivers a flexible system that also enables them to select from a comprehensive range of slings.
• Wide Lifting Range: Dual action telescopic mast, which can be combined with an extended jib, offers a wide lifting range for lifting onto beds and from the floor.
• Flexible System with Several Options: Optional scale available, as well as three sizes of castors including extra-low to facilitate access under low couches and trolleys.

Features and Benefits:

• Powered DPS: Minimizes manual handling and improves precision when positioning the patient.

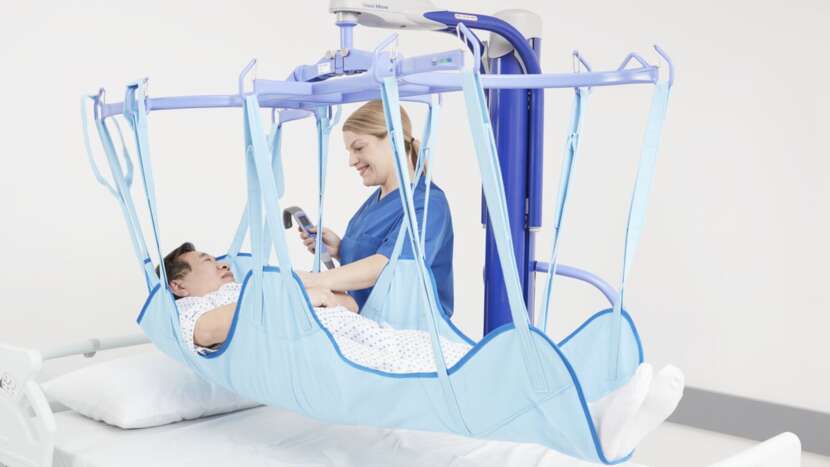

• Combi Attachment: Smooth and easy to change between different spreader bars and stretcher frames.

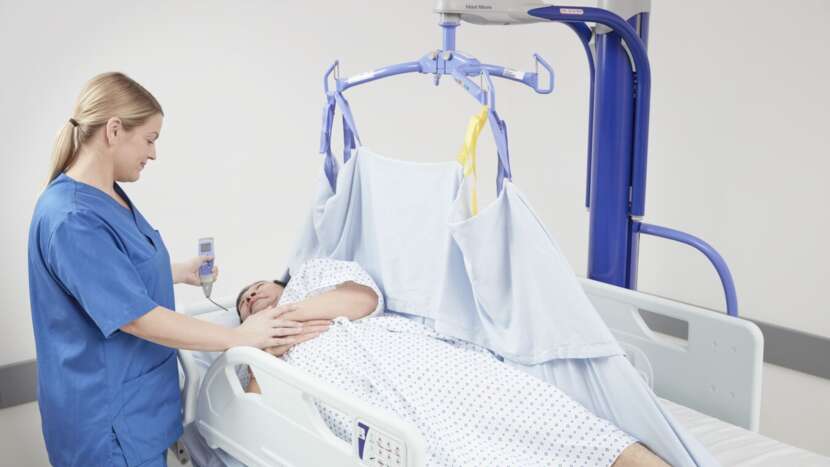

• Dual Controls: On the mast and the hand control, allowing the caregiver to stay close to the patient and maintain good eye contact throughout the lift and transfer process.
• Telescopic Vertical Mast: Provides stability while the patient is lifted.
• Castor Size: Available in standard, low, and extra-low to facilitate access under low beds and trolleys.
• Scale (Option): Integrated scale supports an efficient weighing routine.

Specifications:

• Weight and Dimensions:

  • Max Safe Working Load: 500 lbs (227 kg)
  • Max Safe Working Load with Extended Jib: 287 lbs (130 kg)
  • Lifter Weight (with spreader bar and battery): 154 lbs (70 kg)
  • Max Lifting Height: 62 in (1575 mm)
  • Min Lifting Height: 8 ¾ in (225 mm)
  • Lifting Stroke: 53.12 in (1350 mm)
  • Min Total Storage Height: 55.25 in (1402 mm)
  • External Width (legs closed/open): 28.25 in / 47.12 in (718 mm / 1196 mm)
  • Internal Width (legs closed/open): 22.75 in / 42.25 in (578 mm / 1074 mm)
  • Leg Clearance (standard castors): 4.5 in (115 mm)
  • Leg Clearance (low castors): 4 in (101 mm)
  • Leg Clearance (extra-low castors): 2.25 in (57 mm)
  • Chassis Clearance (standard & low castors): 1 in (25 mm)
  • Chassis Clearance (extra-low castors): 0.75 in (19 mm)
  • Lifter Length: 44 in (1118 mm)
  • Turning Diameter: 48 in (1222 mm)

• Electrical:

  • Lifter Protection Class: IPX4
  • Hand Control Protection Class: IPX7
  • Battery: 24V 4Ah
